本田專用檢測儀
本產品是為汽車修理廠打造的本田專用車輛故障檢測診斷設備，采用有線技術實現，同時支持串口和USB2.0。
·
HONDA INTERFACE MODULE是HONDA公司最新的檢測儀器，軟件覆蓋1992年到最新生產的HONDA/ACURA所有車型，支持檢測的系統包括：動力、車身、底盤、ABS、SRS、防盜等，并支持CAN數據總線車型，能夠對汽車控制模塊進行重新編程。HIM采用PC作為工作平臺，通過HIM通訊模塊與車輛進行通訊，中文操作界面，是檢測本田汽車最理想的工具。
產品功能:HONDA INTERFACE MODULE是HONDA公司最新的檢測儀器，軟件覆蓋1992年到最新生產的HONDA/ACURA所有車型。
支持檢測的系統包括：動力、車身、底盤、ABS、SRS、防盜等，并支持CAN數據總線車型，能夠對汽車控制模塊進行重新編程。
HIM采用PC作為工作平臺，通過HIM通訊模塊與車輛進行通訊，中文操作界面，是檢測本田汽車最理想的工具。
檢測系統：
動力燃油噴射
自動變速箱
安全氣囊
防盜/防啟動
防抱死系統
牽引控制系統
汽車穩定系統
4輪輪轉向
扭矩變換器系統
電動助力轉向
牽引模塊
無鑰匙進入
輪胎壓力監控系統
控制模塊
故障碼
凍結數據框
集成的馬達輔助
超級操縱-全部輪驅動
主要功能:
讀故障碼，清故障碼
讀數據流
<繪制數據流趨勢曲線
系統設定
控制單元編程
自動檢側儀器內部狀態
記錄和回放
雙向控制功能--在驅動執行元件同時，讀取響應數據
產品特點:
1、有故障碼凍結幀數據，可分析故障發生時數據，方便維修
2、有完善的動作測試及波形顯示功能
3、可對現實數據和標準數據對比，分析故障
4、當系統存在故障時可通過儀器故障引導進行維修，相當于你請了一個專家一樣，快捷準確
5、產品支持語言：加拿大，歐洲，美國，日本等區域所使用的語言

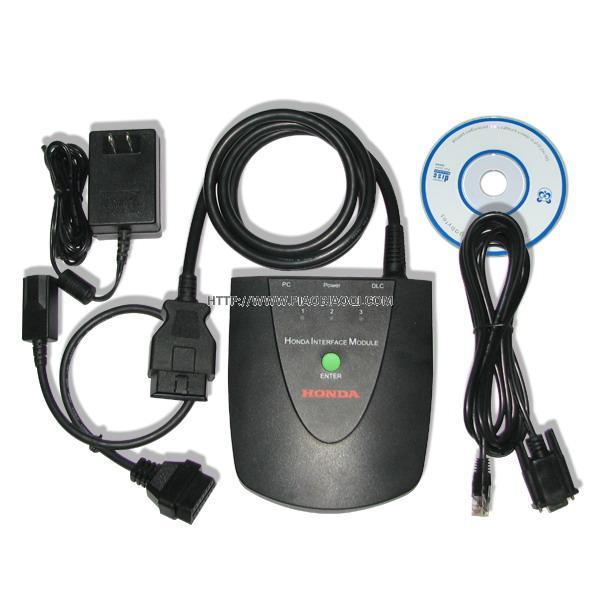

產品配置:
1 HIM主機1臺(OBDII線)
2 DVD光盤1張
3 3Pin線條,Lin網線(RS232接頭) 1根 電源1個
HIM (Honda & Acura Diagnostic System)is the latest diagnostic equipment for Honda vehicles. Diagnostic functions available for vehicles of HONDA/ACURA from year 1992 to2007.Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc. It supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.
Honda Diagnostic System HDS
Description:
HIM (Honda & Acura Diagnostic System)is the latest diagnostic equipment for Honda vehicles. Diagnostic functions available
for vehicles of HONDA/ACURA from year 1992 to2007.Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc. It
supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.
Function:
1.Functions supported by Honda/Acura protocols
1) Reading and decoding fault codes from control blocks memory
2) Deleting fault codes
3) Displays system current parameters in digital form
4) Displays system? current parameters in graphical form
5) Combined displaying of data
6) Management of executive devices
7) Logs keeping - writing and keeping of digital parameters in memory
8) Special functions - changing of permissible settings of blocks, programming etc.
2.Functions supported by OBD-II protocols
1) Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once);
2) Mode $02 - Displays parameters of freeze frame;
3) Mode $03 - Reading and decoding of fault codes from control block? memory;
4) Mode $04 - Deleting of fault codes (memory clearing);
5) Mode $05 - Displays results of oxygen sensors;
6) Mode $06 - Displays results of changeably controlled systems and components;
7) Mode $07 - Displays results of constantly controlled systems and components;
8) Mode $08 - Management of executive devices;
9) Mode $09 - Displays car identification info.
Hardware and software requirements:
PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later). Hard disk drive with at least 400MB
of free space
CD-ROM drive (if a high-speed Internet connection is not available)
RS232 port required to connect PC to HIM (PC version software only)
Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)
Internet connection (high-speed connection recommended)
Package list:
1pc x HIM with OBDII Cable
1pc x DVD
1pc x 3 Pin Cable
1pc x RS232 Cable
|
